Silver forged magnesium wheel






Basic Information:
Place of Origin: |
Zhengzhou China (Mainland) |
Brand Name: |
SinoMg |
Certification: |
ISO9001:2000. SGS |
Model Number: |
15″ 16″ 17″ 18″ 19″ 20″ |
Minimum Order Quantity: |
4 Piece |
Price: |
Negotiable |
Packaging Details: |
Wooden Case |
Delivery Time: |
20 – 30 days |
Payment Terms: |
T/T, L/C, Western Union, MoneyGram, Paypal |
Supply Ability: |
2,000,000 piece per year |
Detail Information
Product Name: |
Forging Magnesium Wheels |
Wheel Type: |
Forging |
Wheel Hub: |
15" 16" 17" 18" 19" 20" |
Material: |
Mg Alloy, Magnesium Alloy |
Finish Proces: |
Painting, Wire Brush, Polish And Chrome |
ET Data: |
10MM - 50 MM |
Hole: |
4/5/8/10 Inch |
PCD Data: |
100mm, 108mm, 112mm, 114.3mm, 115mm 120.65mm |
Painting Color: |
Black, Chrome, Grey, Matt Black, Matt Grey And Sliver |
Width: |
13J - 22J |
CB: |
73.1 - 30.8 |
Spoke Types: |
Equal Diameter Spoke |
Drive Wheel: |
4 WD |
Fuel Consumption Reduced: |
10% - 18% |
Emission Reduced: |
3% |
Braking Distance Reduce: |
3% |
Acceleration Time Reduce: |
4% |
Steering Force Reduce: |
3% |
Tire Life Improved: |
5% |
Endurance Mileage Improved: |
10%-15% |
Wheel Accessory: |
Hub Ring |
HS Code: |
870870 |
High Light: |
108mm PCD 16 Inch Mag Wheels,OEM 108mm 20 Inch Mag Wheels,20 Inch Mag Wheels 22J Width |
Product Description

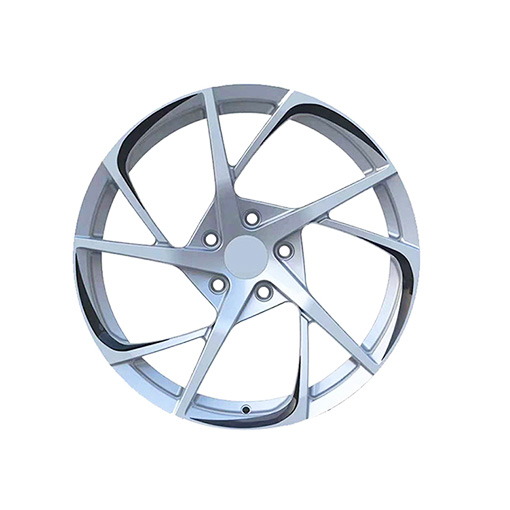

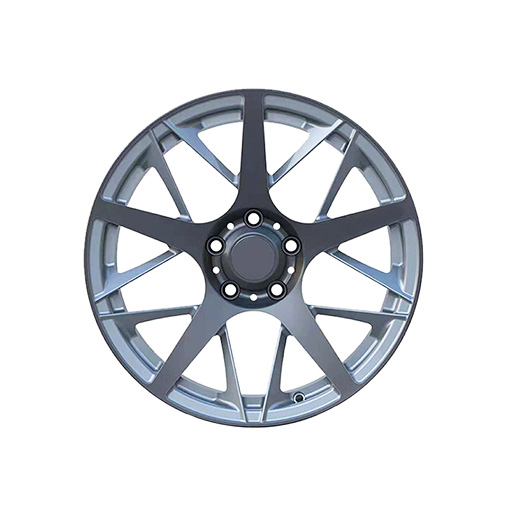

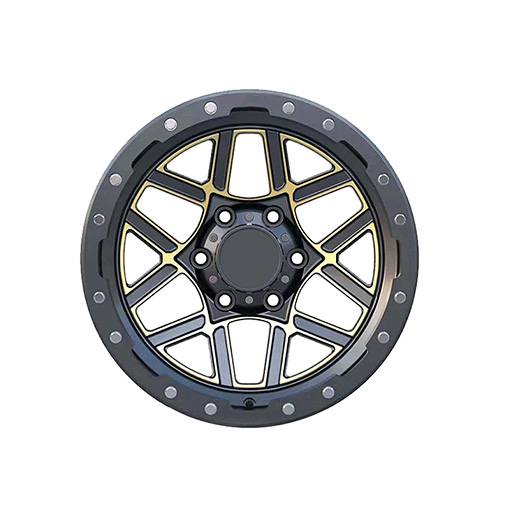

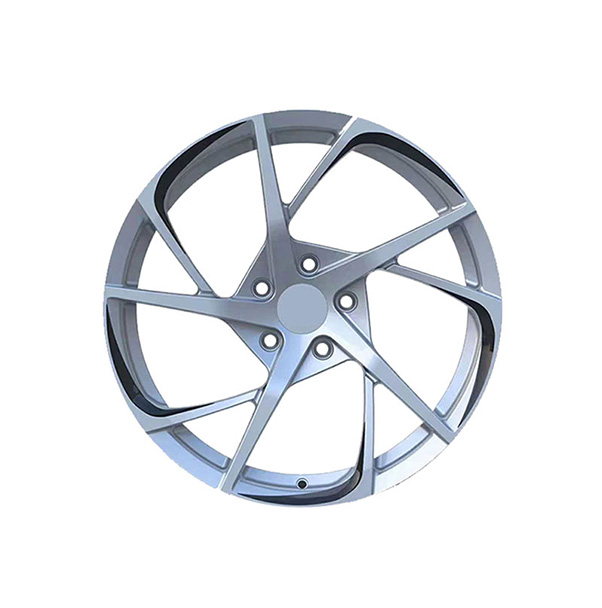

OEM Forged Magnesium Alloy Lightweight Wheel 15" 16" 17" 18" 19" 20"
Description
Forged magnesium wheels are extremely durable and rigid. The strength of a forged wheel made from magnesium alloy fare exceeds the strength of a cast equivalent. This is achieved by forming a unique fibre structure of the alloy manufactured by the precision 3-D hot forging process in a press with a 20,000-ton capacity. A forged wheel does not crack; it is designed to bend without cracking. Forged magnesium wheels are stronger and more durable. Forged magnesium wheels are very lightweight, as much as 1.5 times lighter than aluminium wheels, forged magnesium wheels are twice as light compared to cast wheels of the same dimension.
Key properties of magnesium alloy
- Lightweight
- Low density (two thirds that of aluminum)
- Good high-temperature mechanical properties
- Good to excellent corrosion resistance
Magnesium wheels are light wheels, much lighter than steel or aluminum wheels. That means they will give better mileage for your car because there's less weight to move. You'll also find that they're less prone to bend or buckle if you dip into a pot hole. This lighter weight requires less wheel balancing over the life of the magnesium wheels. It also translates into more responsive steering and handling, both of which are important factors in their favor. They corner very well with low profile tires.
Specification
The range of new energy automobile can be increased by 10% if magnesium alloy wheel hub is be used , BYD's E6 new energy automobile can run 300 kilometers on full power, one hundred kilometers consumes about 20 kilowatt-hours of electricity, After using magnesium alloy hub, the range of the car can be increased by about 30 km, and saves about six kilowatt-hours of electricity to achieve effective energy saving. For fuel vehicles, fuel saved 11.79% per kilometer,CO2 emissions were reduced by 2.06g
Item |
15*6 |
16*7 |
17*7.5 |
18*8.5 |
19*8 |
Reference Weight (kg) |
5.5 |
6.5 |
7.2 |
8.3 |
9.2 |
Load rating(kg) |
600 |
690 |
750 |
750 |
800 |
ET |
ET 30-60, can be specified as 30, 35, 38, 40, 42, 45, 54, 60 etc. |
||||
Scope of PCD |
Accept the customization of 98 ~ 139.7mm,suitable for most cars. |
||||
Raw material |
AZ80A |
||||
Technology |
Forging + Machining + Painting |
||||
Note: All parameters can be customized |

Reducing vehicle weight is one of the important measures to improve Automobile fuel economy, reduce energy consumption and improve safety performance. For every 100kg reduction in the dead weight of an automobile, the fuel consumption of 100km can be reduced by about 0.7l, and the CO2 emission can be reduced by 2.5g for every 1L of fuel saved. The use of magnesium alloy wheel hub is one of the most important ways of automobile lightweight.
Our Advantage of Forged Magnesium Wheel
-
1. Quality Process Control
All wheels are checked by X-RAY testers, Helium or Water Air-leakage testers, Metallurgical Inspectors, Balancing Testers, Run-out Testers etc.
-
2. Strength Assurance
Based on American Standard--SAE, Japanese standard--VIA/JWL or Germany Standard-- TUV, we do Impact testing, Cornering Fatigue testing, and Radial Fatigue testing
-
3. Dust free
Painting line is sealed and dust-free
-
4. Minimum Order
40 wheels on each part number can be acceptable for production.
-
5. Big inventory
Big inventory (70,000 wheels) for various choices and instant shipment from our warehouse, you can choose even 4 wheels to cover more various car models.
-
6. OEM/ODM service
Use your logo for your wheels
OEM 108mm PCD 16 Inch 20 Inch Mag Wheels 22J Width Matt Black

-
1.How do you ensure wheel quality?
A: Every wheel is physically tested in compliance with JWL VIA or TUV standard; Our team ensures the production process at every stage and our QC will inspect each procedure as well.
-
2.How long does it take to finish the mold development?
A:40-45 days around
-
3.Can I take a sample first to check the product quality?
A: We can offer one sample for our customers if they open the mold in our company.
-
4.In case of quality problem, how do you deal with them?
A: Firstly, you should take the photos or videos and send to us; Secondly, we will send you new wheels and cover all charges; Or you can deduct the wheel charges next order
-
5.What can I do if I cannot find any interesting wheels in your website?
A: Contact us on line or send us email, we can send you our new design, or you send us your pictures or designs, OEM and ODM are also welcome
-
6.Can you help me build a new brand in my market?
A: Yes, we are glad to do so.
-
7.How to order and make a payment?
A:After your selection, we will make you a PI. You can pay the deposits by T/T bank transfer or open the 100% irrevocable L/C at sight from your bank.
-
8.what kind of finishing can you do?
A: Black, silver, gunmetal, matt black, grey, hyper black, hyper silver, machined face, machined lip, color line, chrome, vacuum chrome, anodized, full Polish, milling, sand blast, two colors, etc.
-
9.What kind of rims can you produce?
A: Lower pressure, Gravity casting, Forged
