Magnesium water heater anode






Basic Information:
Place of Origin: |
Zhengzhou China (Mainland) |
Brand Name: |
SinoMg |
Certification: |
ISO9001:2000. SGS |
Model Number: |
M69901 |
Minimum Order Quantity: |
20 Kilogram |
Price: |
Negotiable |
Packaging Details: |
Wooden Case |
Delivery Time: |
10-15 Days |
Payment Terms: |
T/T, L/C, Western Union, MoneyGram, Paypal |
Supply Ability: |
100,000 Piece per Month |
Detail Information
Produce Name: |
Magnesium Anode |
Mode: |
M69901 |
Material: |
Magnesium Alloy |
Purity: |
>98% |
Shape: |
Round |
Application: |
Aviation, Electronics, Industrial, Medical, Chemical |
Thickness: |
0.5-300MM |
Width: |
500MM |
Standard: |
JIS, GB, DIN, BS, ASTM, AISI |
Enviroment: |
Sea Water, Fresh Water |
Feature: |
Water Heater |
Color: |
Silver White |
Surface: |
Bright |
Sample: |
Free |
HS Code: |
8104300010 |
OEM/ODM: |
Available |
High Light: |
98 Pure Magnesium Sacrificial Anode, Magnesium Sacrificial Anode AZ31B, AZ31B Magnesium Anode In Geyser |
Product Description

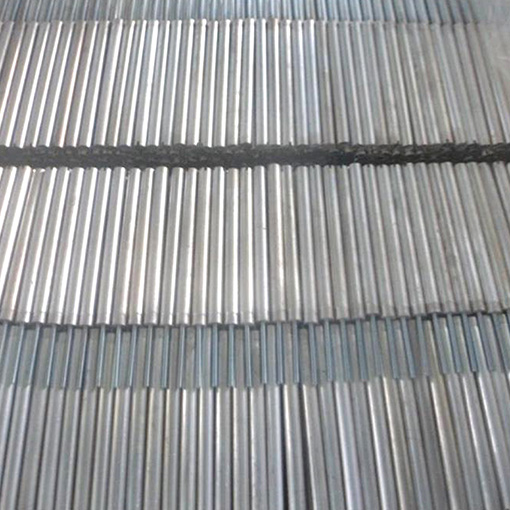

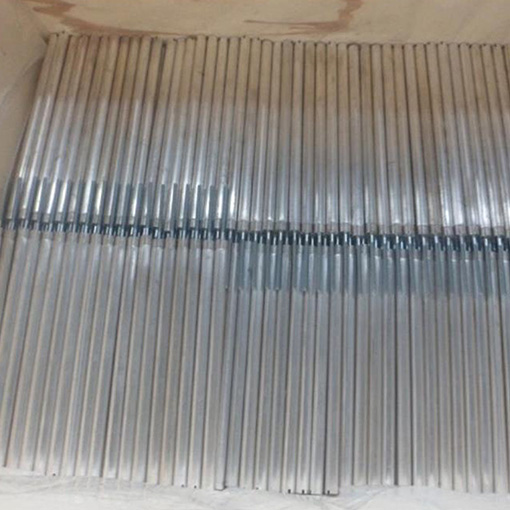

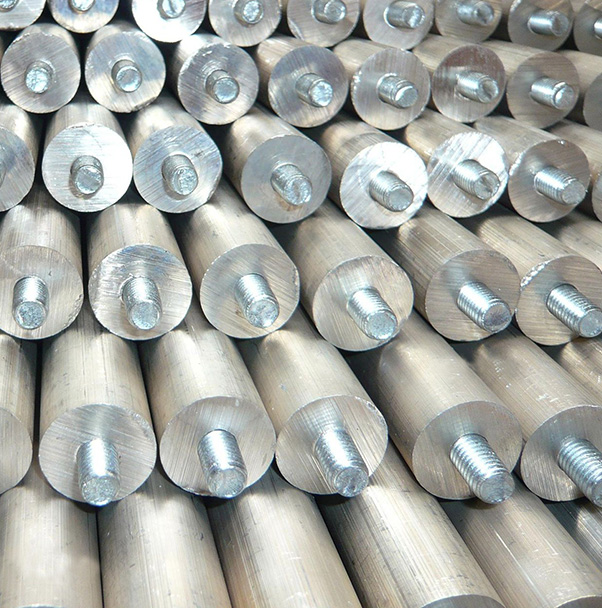

Extruded Magnesium Alloy Sacrificial Anode AZ31B for Water Heater
Description
The magnesium alloy sacrificial anode (abbreviation: magnesium anode) developed and produced by our company according to the national standard GB/T17731-2009 "Magnesium alloy sacrificial anode" is suitable for the cathodic protection of metal structures in soil, fresh water and other media. As an ideal sacrificial anode material, this product has the following characteristics:
(1) The specific gravity is small and the potential is relatively negative.
(2) The driving voltage to iron is high, and the current efficiency is low.
(3) Large power generation per unit mass and long service life.
Specification
Type: AZ31B, ZK61M, AZ80A, AZ91D, M2M, ME20M, AZ40
Specification: Casting round bar billet(Φ3-160*3000)
Remarks: According to the requirements of sawing and heat treatment
UK Standard ZK60 WE43 Magnesium Metal Plate Small Modulus Of Elasticity.
Product Type: |
Magnesium Anode |
Material: |
Magnesium alloy AZ31B |
Differnet kinds: |
Casting rod, Extruded rod, Rod with steel cap, Flexible anode rod |
Chemical composition: |
Al:2.5-3.5%, Zn:0.6-1.4%,Mn:0.2-1.0%,Fe:0.005%max,, Cu:0.01%max,Ni:0.001%max,Si:0.1%max, Other:0.3%max,Mg:Balance |
Propertices: |
Open-circuit voltage: 1.5-1.55V Close-circuit voltage:1.45-1.50V Actual capacitance: 1.105A.h/g Current efficiency:50%min |
Steel cap: |
stainless steel, galvannized, in black, coppper etc. |
Application: |
It mainly used in water heater,boiler,heat exchanger,water tank,etc. It can softing water,de-dirt residual,ensure water sanitation,water scale inhibition,protect inner tank,extend service life,etc. |
Feasures: |
The extruded anode rod can be with or without steel core,can be with steel cap or only with screw;the size of cap/screw can be customilized by your specific requirements. Mainly different kinds of steel cap and screw available. |
Application
1. Transportation
Seat frame, armrest, small table panel, pedal, in-built profiles, driving frame, sleeper frame work, dashboard frame work etc.
2. Electronics
Magnesium alloys have excellent thin wall casting performance. They wall thickness of magnesium alloy die castings can reach 0.6-1.0mm, and the die castings can remain certain strength, stiffness and impact resistance. These performances are very consistent with development demand of lightweight, thin short and small for laptop. Mobile phone, digital camera, that makes the application of magnesium alloy grow sustainably.
3. Aerospace industry
Engine shell, parts. Skin and cabin, frame, holder, wingtip, aileron, fuel tank, gearbox, airscrew, seat, undercarriage, all kinds of shell, siding, clapboard etc.
4. Military industry
Panzer tank vehicle, torpedo, guided missile, aircraft / spacecraft, military electronic equipment, military statellite.
5. Medical industry
Medical device and implant material.
Chemical Composition
Semi-continuous casting products of high strength, heat resistant rare earth-magnesium alloy set by National Standard, ASTM, EN standard and autonomous development. The company can produce aylindrical bars with Dia. 90-800mm and casting slabs with max working size of 1200*450mm. the grain size of part of the alloys can be controlled under 90um, and the quantity of magnesium ingots has reached or exceeded correlative standards. The products have been widely used in major industries such as forging, extrusion, rolling etc.
Alloy Element | Type | Chemical Composition% | Other elements b | |||||||||||
Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Sub-total | ||
MgAlZn | AZ31B | Balance | 2.5-3.5 | 0.6-1.4 | 0.1-0.2 | --- | --- | ≤0.08 | ≤0.003 | ≤0.04 | ≤0.01 | ≤0.001 | --- | ≤0.05 |
AZ40M | Balance | 3.0-4.0 | 0.2-0.8 | 0.15-0.5 | --- | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.005 | ≤0.01 | ≤0.01 | |
AZ80A | Balance | 7.8-9.2 | 0.2-0.8 | 0.12-0.5 | --- | --- | ≤0.10 | ≤0.005 | --- | ≤0.05 | ≤0.005 | --- | --- | |
AZ91D | Balance | 8.5-9.5 | 0.45-0.9 | 0.17-0.4 | --- | --- | ≤0.08 | ≤0.004 | --- | ≤0.025 | ≤0.001 | 0.0005- | ≤0.01 | |
0.003 | ||||||||||||||
MgMn | M2M | Balance | ≤0.20 | ≤0.30 | 1.3-2.5 | --- | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.007 | ≤0.01 | ≤0.01 |
MgZnZr | ZK61M | Balance | ≤0.05 | 5.0-6.0 | ≤0.10 | --- | 0.3-0.9 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.005 | ≤0.01 | ≤0.01 |
MgMnRe | ME20M | Balance | ≤0.20 | ≤0.30 | 1.32-2.2 | 0.15-0.35 | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.007 | ≤0.01 | ≤0.01 |
Our Advantages
Corrosion protection
Protect water heater, water containers of steel structure
Protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
Extruded Magnesium Alloy Sacrificial Anode AZ31B for Water Heater

-
1.Do you provide OEM/ODM service?
A: Yes, OEM/ODM is welcome, we have the professional R&D team.They work for you all the time (design, tooling/mould, sample, mass production).
-
2.How can I know your company further?
A:Please leave message in website with you email or phone number, the sales manager will send the catalogue to you by email or call you directly.Also welcome to visit our company!
-
3.How can I get the quotation, sample, mass production?
A: Please show us the sizes/drawing of the parts you need, our business director will show you detailed quotation with the lead time of sample and mass production.
-
4.How do you control the quality?
A: The products are produced under ISO9001 & SGS certificate.
