Mg thermoelectric cooler






Basic Information:
Place of Origin: |
Zhengzhou China (Mainland) |
Brand Name: |
SinoMg |
Certification: |
ISO9001:2000. SGS |
Model Number: |
AZ31 AZ61 AZ91D |
Minimum Order Quantity: |
100 Piece |
Price: |
Negotiable |
Packaging Details: |
Carton |
Delivery Time: |
25-30 days |
Payment Terms: |
T/T, L/C, Western Union, MoneyGram, Paypal |
Supply Ability: |
1,000,000 Kilogram per month |
Detail Information
Item: |
Magnesium Alloy Heatsink |
Model: |
AZ31 AZ61 AZ91D |
Material: |
Magnesium Alloys |
Application: |
Aviation,Electronic, Industrial & Chemical |
Standard: |
JIS, GB, DIN,BS,ASTM,AISI |
Purity: |
≥96% |
Alloy Or Not: |
Alloys |
Tolerance: |
+/-1%, +/-0.02MM |
Tech Process: |
Extrusion, Deburring, CNC Machining Checking & Packing |
Specification: |
As Per 3D Drawings |
Process Service: |
Ending,Welding,Punching, Cutting & Machining |
Surface Treatment: |
Painting,Powder Coating,Polishing & Electroplating |
OEM/ODM: |
Available |
HS Code: |
8104902090 |
High Light: |
Magnesium Thermoelectric Cooler Heat Sink, 96% Mg Thermoelectric Cooler Heat Sink, 96% Mg Aluminium Heatsink Extrusion |
Product Description

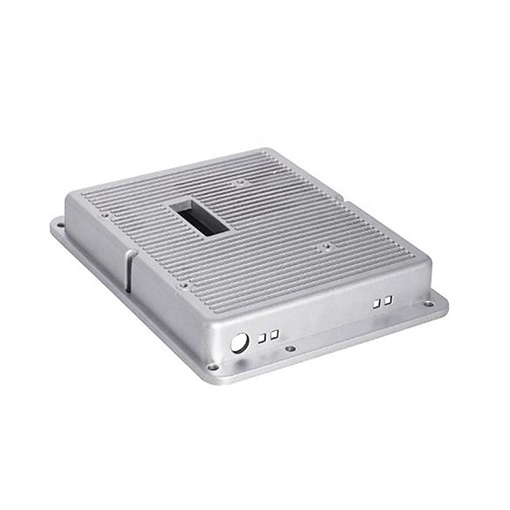

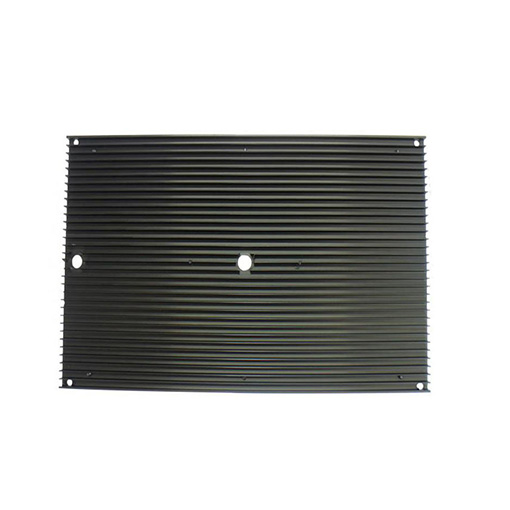

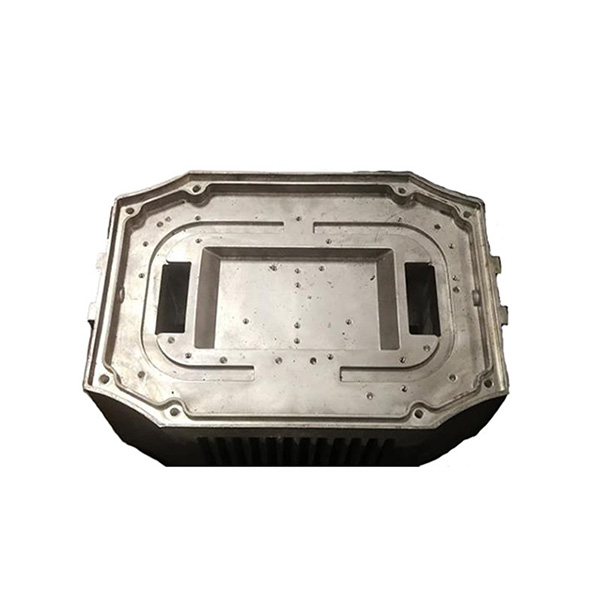

China Supply Magnesium-Based Alloy Heat Sink AZ31 AZ61 AZ91D
Description
Magnesium alloys have advantages in heat dissipation relative to alloys. For heat sinks of magnesium alloy and aluminum alloy materials of the same volume and shape, the heat (temperature) produced by a certain heat source is easier to transfer from the root of the heat sink to the top of the magnesium alloy than the aluminum alloy. Speed, the top is easier to reach high temperature. That is, the temperature difference between the root and top of the radiator made of aluminum alloy material is smaller than that of the radiator made of magnesium alloy material. This means that the temperature difference between the air temperature at the root of the heat sink made of magnesium alloy and the air temperature at the top is larger than that of the heat sink made of aluminum alloy material, so it accelerates the diffusion and convection of the air inside the radiator and improves the heat dissipation efficiency. Therefore, at the same temperature, the heat dissipation time of magnesium alloy is not half that of aluminum alloy.
Because magnesium alloy has good thermal conductivity and low cutting force, the heat dissipation rate during processing is very fast, so the tool life is long and the amount of sticking is small, which can reduce tool costs and shorten the downtime required for tool replacement. Because magnesium is easy to cut, its chip breaking performance is very good, under normal circumstances, only one finishing process can achieve the required final surface finish.
Weight: magnesium alloy is 36% lighter than aluminum alloy, 73% lighter than zinc, and 77% lighter than steel.
Specific strength: magnesium alloy is equivalent to aluminum alloy and steel, much higher than fiber reinforced plastics.
Wear resistance: the wear resistance of magnesium alloy is much higher than that of die-cast aluminum alloy A380.
Damping performance: magnesium alloy is 30 times higher than aluminum alloy.
Specification
Magnesium alloys have advantages in heat dissipation relative to alloys. For heat sinks of magnesium alloy and aluminum alloy materials of the same volume and shape, the heat (temperature) produced by a certain heat source is easier to transfer from the root of the heat sink to the top of the magnesium alloy than the aluminum alloy.
Product Name |
Heatsink; Magnesium heat sink; Extruded heatsink; Heat sink extrusion |
Material |
AZ31 AZ61 AZ91D |
Detailed Size |
As per customers' design |
Max Aspect Ratio( Fin Height / Fin Gap) |
More than 20 times aspect ratio heatsink can be extruded by 800 Tons--6000 Tons extruding machines by most advanced technology |
Max Width |
Ultra wide extruded heatsink can be made by our unique friction welding technology |
Standard Mold Qty |
30,000+ sets standard molds in stock for your option,saving your R&D cost |
Sample Service |
Samples with differernt sizes are availabe for prototypes test within 1 week |
Production Process |
Profiles Extruding---Cutting---CNC Machining(Milling, Drilling,Tapping)---Deburring--- Cleaning--- Inspecting--Packing |
Surface Treatment |
Degreasing,(Black) Anodizing,Sand Blasting,Painting,Chromating and Laser marking |
Reference Standard |
GB/T 3190-2008, GB/T 14846-2008, ISO 2768 |
Experience |
More than 20 years professional manufacturing experience |
Application |
LED Lighting,Inverter,Welding Machine,Communication Device,Power Supply Equipment,Electronic Industry,Thermoelectric Coolers/Generator,IGBT/UPS Cooling Systems,etc. |

Magnesium alloys are well-known for being the lightest structural alloys. They are made of magnesium, the lightest structural metal, mixed with other metal elements to improve the physical properties. These elements include manganese, aluminium, zinc, silicon, copper, zirconium, and rare-earth metals.
Some of magnesium's favourable properties include low specific gravity and a high strength-to-weight ratio. As a result, the material lends itself to a range of automotive, aerospace, industrial, electronic, biomedical, and commercial applications.
Heat sinks are thermally conductive components or devices that absorb and dissipate heat generated by electronic components. Heat sinks cool high-powered devices to prevent overheating. The reliability of electronic components is generally reduced by the square of an increase in temperature. For example, doubling the ambient temperature around a component renders the component 25% less reliable than at the lower temperature. Heat sinks are therefore essential in dissipating generated heat and improving component longevity.
Magnesium Thermoelectric Cooler Heat Sink 96% Mg Aluminium Heatsink Extrusion

-
1.What characteristics make a heatsink a good one?
A: High heatsink surface;Good aerodynamics;Good thermal transfer within the heatsink;Perfect flatness of the contact area;Good mounting method.
-
2.How long is your delivery time?
A:Generally it is 5-10 days if the heatsinks are in stock. or it is 30-40 days for mass production
-
3.Do you provide samples ?
A: Yes, we could offer paid sample for prototypes testing if there is stock.we have thousands of standard heatsinks with different sizes and shapes.
-
4.What is your terms of payment ?
A: Usually 100% payment before shipment. For regular customers,the terms can be nogotiated.
