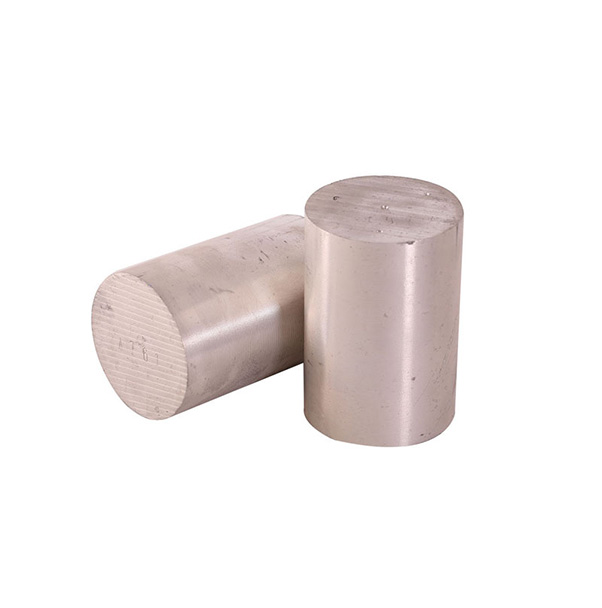

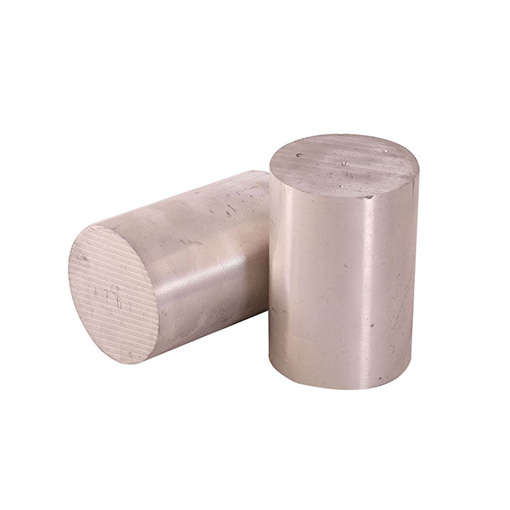

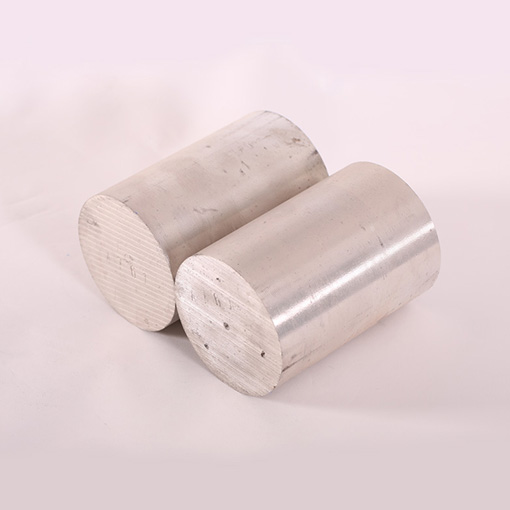

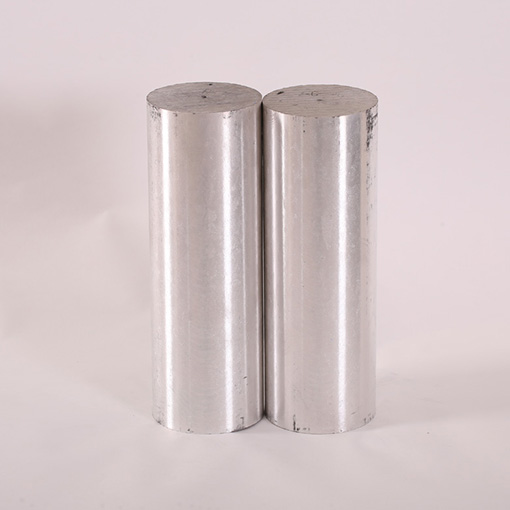

Casting magnesium alloy rod






Basic Information:
Place of Origin: |
Zhengzhou China (Mainland) |
Brand Name: |
SinoMg |
Certification: |
ISO9001:2000. SGS |
Model Number: |
AZ91D |
Minimum Order Quantity: |
100 Kilogram |
Price: |
Negotiable |
Packaging Details: |
Wooden Case |
Delivery Time: |
10-15 days |
Payment Terms: |
T/T, L/C, Western Union, MoneyGram, Paypal |
Supply Ability: |
15,000 Kilogram per month |
Detail Information
Product Name: |
Mg Alloy Rod |
Model Number: |
AZ91D |
Diameter: |
30MM - 800MM |
Purity: |
≥99% |
Length: |
500MM-4000MM |
Weight: |
1kg, 5kg, 15kg, 20kg |
Processing: |
Extrude, Cast, Forging |
Material: |
Magnesium Alloy |
Shaping: |
Round Rod |
Color: |
White And Silver |
Application: |
Aviation, Electronic, Industrial And Chemical |
Surface: |
Smooth And Bright |
Standard: |
JIS, GB, DIN, BS, ASTM B-90, AISI |
Feature: |
Heating And Household Electrical |
Chemical: |
Mg Al Zn Mn Zr |
Main Market: |
US, Korea, Japan, Germany, UK, Australia |
HS Code: |
81049020 |
OEM: |
Available |
High Light: |
High Strength 4m Magnesium Rods, ASTM B90 AZ91D Magnesium Alloy Rod, 4m Magnesium Rods ASTM B90 |
Product Description
High Purity And High Strength Magnesium Alloy Extruded Rod Model AZ91D
Description
High specific strength, elastic modulus, good heat dissipation and eliminate shock resistance to withstand the shock load capacity than aluminum,organic matter and alkali resistance and good corrosion. Mainly used in aviation, aerospace, transportation, chemical, rockets and other industrial sectors. In the utility magnesium is the lightest metal and the proportion of magnesium is about 2/3 of aluminum, iron 1/4. It is the lightest metal in practical metal, high strength, high rigidity.
Compared with conventional casting magnesium alloys, semi-continuous casting magnesium alloys are finer in the organization, more uniform on the ingredients, and more compact inside with higher strength and elongation.
Application: Applied to Magnesium Alloy plates, strips, tubes, rods, profiles, wires and the alloy ingots and slabs used for them.
Standard: ASTM B90/B90M
Processing Technology: Extrusion,Casting.
Features of magnesium alloy rod:
- Good ductility and corrosion resistance
- High electrical and thermal conductivity
- Good room temperature strength at room temperature
- Suitable for round, flat and square bars, pipes, plates and forgings
Size of magnesium alloy rod:
Type: AZ31B, ZK61M, AZ80A, AZ91D, M2M, ME20M, AZ40
Specification: Casting round bar billet(Φ3-160*3000)
Physical Properties
Density: 1.8 Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C
Product Name
Magnesium Alloy Rod
Hot Rolled Magnesium Alloy Rod
Cold Rolled Magnesium Alloy Rod
Large Diameter High Strength Rare Earth Magnesium Alloy Rod
High Performance Magnesium Alloy Rod
Specification & Chemical Composition
Specification
Diameter: 30mm - 800mm
Length is required of customer
Product specification are tailored to customer's requirements
Item | Magnesium Alloy Rod AZ91D |
Material | Magnesium Rod |
Thickness | as customer's required |
Width | as customer's required |
Length | as customer's required |
Size | customize |
Features of Magnesium Alloy Rod | 1.fast heat dissipation,light and good rigidity |
2.Good corrosion resistance and dimensional stability | |
3.Good impact resistance and wear resistance | |
4.Good absorption of vibration energy performance | |
5.high thermal and conductive properties | |
6.non magnetic, good shielding and non-toxic characteristics |
Features of Megnesium Alloy
High specific strength, elastic modulus, good heat dissipation and eliminate shock resistance to withstand the shock load capacity than aluminum,organic matter and alkali resistance and good corrosion. Mainly used in aviation, aerospace, transportation, chemical, rockets and other industrial sectors. In the utility magnesium is the lightest metal and the proportion of magnesium is about 2/3 of aluminum, iron 1/4. It is the lightest metal in practical metal, high strength and high rigidity.
Grade | Chemical Composition, % | ||||
Al | Zn | Mn | Zr | Si | |
AZ31 | 2.4-3.6 | 0.15-1.5 | 0.15-0.40 | ≤0.10 | |
AZ40 | 3.0-4.0 | 0.20-0.80 | 0.15-0.50 | ≤0.10 | |
AZ61 | |||||
AZ80 | 5.5-6.5 | 0.5-1.5 | 0.15-0.40 | ≤0.10 | |
AZ91 | 8.5-9.5 | 0.45-0.90 | 0.07-0.40 | ≤0.08 | |
ZK61 | ≤0.05 | 5.0-6.0 | ≤0.1 | 0.45-0.80 | ≤0.05 |
M1A | 1.2-2.0 | 0.1 |

Carving, aerospace, concrete tools, 3C (cell phone / camera / computer), water heater, refrigerator, gas pipelines etc.
High Strength 4m Magnesium Rods ASTM B90 AZ91D Magnesium Alloy Rod

-
