Magnesium engraving plate






Basic Information:
Place of Origin: |
Zhengzhou China (Mainland) |
Brand Name: |
SinoMg |
Certification: |
ISO9001:2000. SGS |
Model Number: |
WE43 AZ31 AZ91 WE54 AM60 |
Minimum Order Quantity: |
20 Kilogram |
Price: |
Negotiable |
Packaging Details: |
Wooden Case |
Delivery Time: |
10-15 days |
Payment Terms: |
T/T, L/C, Western Union, MoneyGram, Paypal |
Supply Ability: |
5,000 Ton per year |
Detail Information
Item: |
Magnesium-based Plate |
Model: |
WE43 AZ31 AZ91 WE54 AM60 |
Purity: |
≥94% |
Materials: |
Magnesium Alloys |
Application: |
Textile Printing Machinery And Engraving Plate |
Surface: |
Polishing |
Shape: |
Plate, Sheet & Board |
Feature: |
High Specific Strength, Light Metal |
Appearance: |
Flat, Smooth |
Color: |
Silver, White |
Length: |
1-3000MM |
Width: |
1-2600MM |
Thickness: |
0.3-200MM |
Chemical Composition: |
Al Zn Mn Mg |
HS Code: |
8104902090 |
OEM: |
Yes |
High Light: |
AM60 Magnesium Alloy Plate, AZ31 AZ91 Magnesium Alloy Plate, 2.6m Width magnesium sheet metal |
Product Description
Customize Rare Metals WE43 WE54 WE94 Magnesium-Based Alloy Plate
Description
The magnesium alloy are used on the train for vibration attenuation, seat and couchette framework lining board and goods shelf. The wide width usually requests between 1200-1800mm,and thickness between 1 and 1.5mm on cars' front and rear panels, door panels . The shell of 3C product, computer, mobile hard disk, CD, camea, acoustics, cell phone.
Magnesium etching has replaced copper plate in printing and printing plate industry, and average thickness of the plate is 5mm. Magnesium has been continuously used in electric tool and sport equipment.
Stable resource provision: The reserves of magnesium in the earth's crust rank eighth. Most of the magnesium raw materials are extracted from seawater, so its resources are stable and sufficient.
Light weight: Magnesium alloy has the lightest specific gravity among all structural alloys. Its specific gravity is 68% of aluminum alloy, 27% of zinc alloy, and 23% of steel. In addition to the shell and internal structure of 3C products In addition to parts, it is also an excellent material for parts such as automobiles and airplanes.
Our company produces high-quality extruded or rolled magnesium alloy plates with complete specifications and various grades, including AZ31B, AZ61, AZ80, AZ91, ZK60, ZK61, WE43, WE94, etc.
Specification
The magnesium alloy are used on the train for vibration attenuation, seat and couchette framework lining board and goods shelf.
Alloy and Temper | Thickness (mm) | Yield Strength 0.2% Offset (MPa) | Tensile Strength (MPa) | Elongation in 5.65√A (%) |
AZ31B-O | 0.5-1.5 | 125 | 221 | 10 |
1.5-6.3 | 105 | 221 | 9 | |
6.3-75 | 105 | 221 | 8 | |
AZ31B-H24 | 0.5-6.3 | 200 | 269 | 5 |
6.3-9.5 | 179 | 262 | 7 | |
9.5-12.7 | 165 | 255 | 8 | |
12.7-25 | 152 | 248 | 8 | |
25-50 | 138 | 234 | 6 | |
50-80 | 124 | 234 | 7 | |
AZ31B-H26 | 6.3-10 | 186 | 269 | 6 |
10-12.5 | 179 | 262 | 6 | |
12.5-20 | 172 | 255 | 5 | |
20-25 | 159 | 255 | 5 | |
25-40 | 152 | 241 | 5 | |
40-50 | 148 | 241 | 5 |
Application
Our product are widely used in transportation (automobiles, motorcycles, bicycles, rail transit, aviation); electronic products (computers, mobile phones, digital cameras, etc.); medical equipment (wheelchairs, crutches, rehabilitation fitness equipment, etc.) aerospace; textile High standards and diversified demands in the fields of printing machinery and automobiles.
Our Product and Technical Advantages
-
Professional & advanced magnesium alloy casting technology
-
Better elongation of magnesium alloy plate is much better
-
More uniform crystal size of magnesium alloy plate
-
Smaller size difference of magnesium alloy plate
-
The flatness of our magnesium alloy plate can reached 0.0001mm after special hot-pressing process
-
Customized magnesium alloy plate with thickness range from I - 200 mm
-
Advanced testing & inspection equipment
-
Premium after-sales service

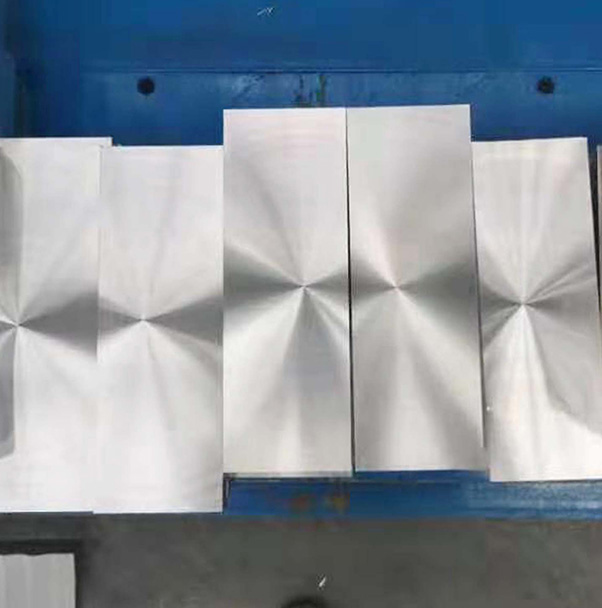

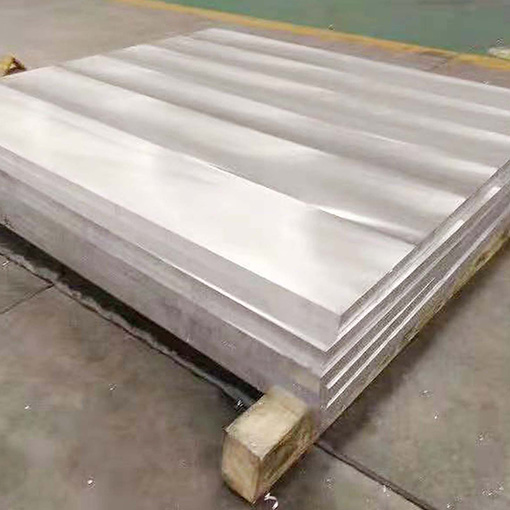

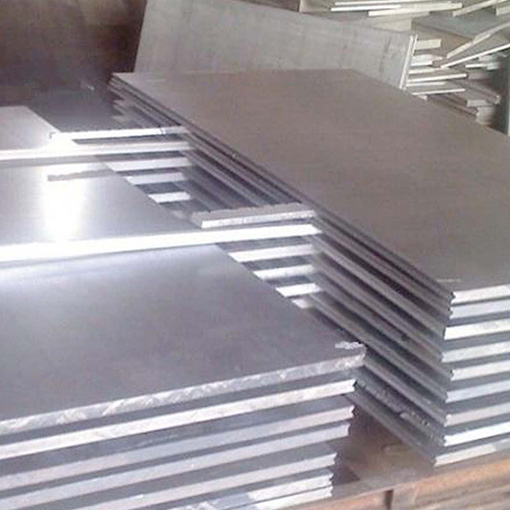

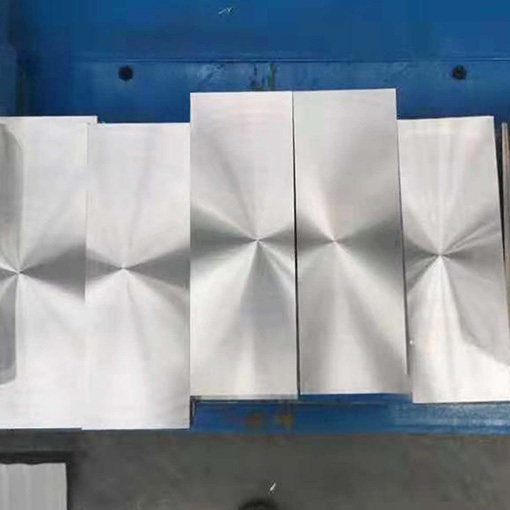

AZ31 AZ91 AM60 Magnesium Alloy Plate 2.6m Width Polishing Surface

-
1.Can I order a sample quantity ?
A: Yes
-
2.Can I add my logo on the boxes/cartons?
A:Yes, OEM and ODM are available from us.
-
3.What are the benefits of being a distributor ?
A: Special discount Marketing protection.
-
4.How does your factory control the quality of your products?
A: 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
-
5.Can we mix items in one 20FT container?
A: Yes
-
6.Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our plant
