China manufacturer Al anode
Basic Information:
|
Place of Origin: |
Zhengzhou China (Mainland) |
|
Brand Name: |
SinoMg |
|
Certification: |
ISO9001:2000. SGS |
|
Model Number: |
A67604 |
|
Minimum Order Quantity: |
20 Kilogram |
|
Price: |
Negotiable |
|
Packaging Details: |
Wooden Case |
|
Delivery Time: |
10-15 Days |
|
Payment Terms: |
T/T, L/C, Western Union, MoneyGram, Paypal |
|
Supply Ability: |
100,000 Piece per Month |
Detail Information
|
Item: |
Aluminum Sacrificial Anode |
Model: |
A67604 |
|
Raw Materials: |
Aluminum Alloy |
Purity: |
≥98% |
|
Shape: |
Barcelet, Round, Trapezoid |
Application: |
Aviation, Electronic, Industrial, Medical & Chemical |
|
Thickness: |
0.5 MM - 300 MM |
Width: |
500 MM |
|
Standard: |
JIS, GB, DIN, BS, ASTM & AISI |
Enviroment: |
Sea Water, Fresh Water |
|
Feature: |
Water Heater |
Color: |
Silver, White |
|
Surface: |
Bright, Smooth |
Sample: |
Yes |
|
OEM: |
Yes |
HS Code: |
76169910.90 |
|
High Light: |
Aluminum Anodes For Freshwater, Auminum Alloy Sacrificial Anode |
||
Product Description

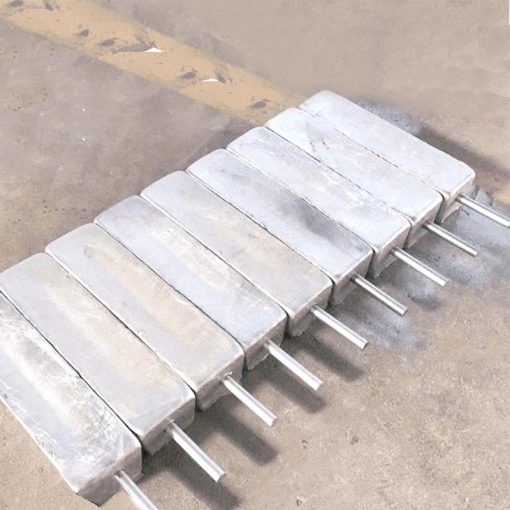

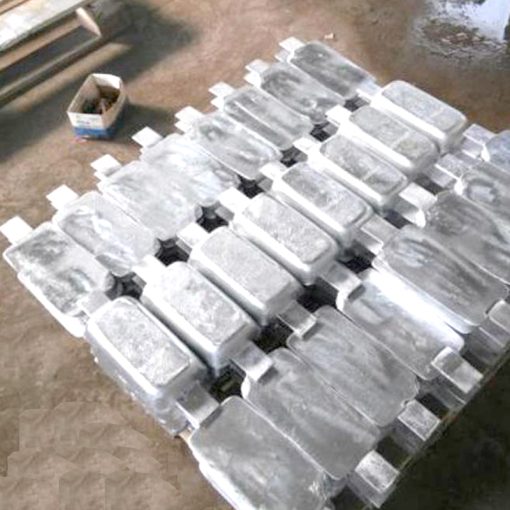

Hot Selling Aluminum-Based Sacrificial Anode For Isolated Installations
Description
Aluminum alloy bracelet sacrificial anode is specially developed for offshore pipelines. The anode of each set of bracelets is composed of a multi-stage circular directional cast steel core. The number of segments depends on the diameter of the pipe.
SinoMg produces a large number of aluminum anodes through intermediate frequency furnaces, which ensures the high efficiency of our aluminum anodes.
The aluminum anode has a relatively low driving potential, low consumption rate and high current efficiency.
Aluminum sacrificial anode is suitable for cathodic protection against metal corrosion of ships, machinery and equipment, marine engineering and seaport facilities in seawater media, as well as pipelines, cables and other facilities in sea mud.
Specification
Type: Aluminum
Specification: Casting round bar billet(Φ3-160*3000)
Remarks: According to the requirements of sawing and heat treatment
|
Product Name: |
Aluminum-based Sacrificial Anode |
|
Material |
Aluminum alloy |
|
Differnet Kinds |
Casting rod, Extruded rod, Rod with steel cap, Flexible anode rod |
|
Chemical Composition |
GB/T |
|
Property |
Open-circuit voltage: 1.5-1.55V Close-circuit voltage:1.45-1.50V Actual capacitance: 1.105A.h/g Current efficiency: 50% min |
|
Steel Cap |
stainless steel, galvannized, in black, coppper etc. |
|
Application |
It mainly used in water heater,boiler,heat exchanger,water tank,etc. It can softing water,de-dirt residual,ensure water sanitation,water scale inhibition,protect inner tank,extend service life,etc. |
|
Feature |
The extruded anode rod can be with or without steel core,can be with steel cap or only with screw;the size of cap/screw can be customilized by your specific requirements. Mainly different kinds of steel cap and screw available. |
Chemical Composition
High strength, heat resistant rare earth- Aluminum alloy die castings set by national standard, ASTM, EN standard and autonomous development, such as steering wheel skeleton, the tank pan, power tools housing, electric wheel hub, 3C product shell and skeleton etc. The mechanical properties of the products are excellent and the microstructure of the products is homogeneous.
Application
1. Transportation
Seat frame, armrest, small table panel, pedal, in-built profiles, driving frame, sleeper frame work, dashboard frame work etc.
2. Electronics
Aluminum alloys have excellent thin wall casting performance. The wall thickness of aluminum alloy die castings can reach 0.6-1.0mm, and the die castings can remain certain strength, stiffness and impact resistance. These performances are very consistent with development demand of lightweight, thin short and small for laptop. Mobile phone, digital camera, that makes the application of aluminum alloy grow sustainably.
3. Aerospace industry
Engine shell, parts. Skin and cabin, frame, holder, wingtip, aileron, fuel tank, gearbox, airscrew, seat, undercarriage, all kinds of shell, siding, clapboard etc.
4. Military industry
Panzer tank vehicle, torpedo, guided missile, aircraft / spacecraft, military electronic equipment, military statellite.
5. Medical industry
Medical device and implant material.
Our Advantages
Corrosion protection
Protect water heater, water containers of steel structure
Protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
Hot Selling Aluminum-Based Sacrificial Anode For Isolated Installations
-
1.Do you provide OEM/ODM service?
A: Yes, OEM/ODM is welcome, we have the professional R&D team.They work for you all the time (design, tooling/mould, sample, mass production).
-
2.How can I know your company further?
A:Please leave message in website with you email or phone number, the sales manager will send the catalogue to you by email or call you directly.Also welcome to visit our company!
-
3.How can I get the quotation, sample, mass production?
A: Please show us the sizes/drawing of the parts you need, our business director will show you detailed quotation with the lead time of sample and mass production.
-
4.How do you control the quality?
A: The products are produced under ISO9001 & SGS certificate.
