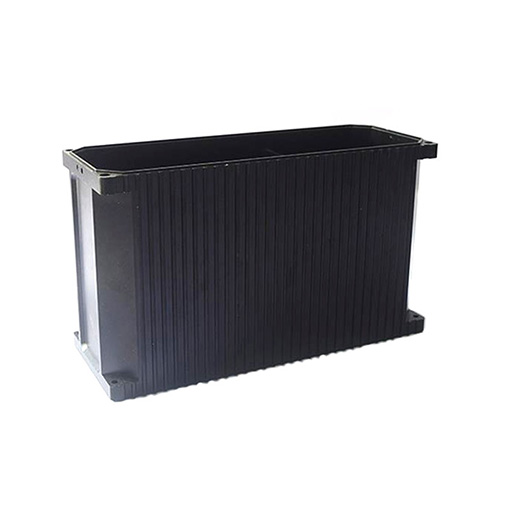

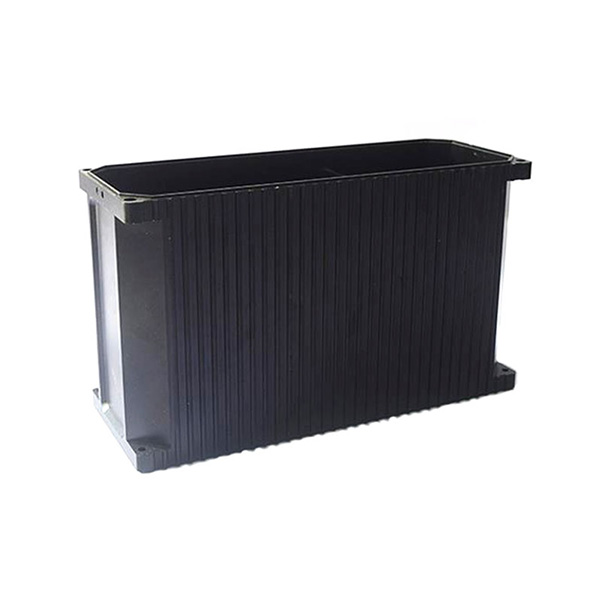

Inverter die casting heat sink AZ91D

Basic Information:

Place of Origin:

Zhengzhou China (Mainland)

Brand Name:

SinoMg

Certification:

ISO9001:2000. SGS

Model Number:

AZ31B AZ61A AZ91D AZ92

Minimum Order Quantity:

100 Piece

Price:

Negotiable

Packaging Details:

Carton

Delivery Time:

25-30 days

Payment Terms:

T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability:

1,000,000 Kilogram per month

Detail Information

Product Name:

Magnesium Alloy Heatsink

Model:

AZ31B, AZ61A, AZ91D, AZ92

Material:

Mag Alloys

Application:

Aviation,Electronic, Industrial, Chemical

Standard:

JIS, GB, DIN,BS,ASTM & AISI

Purity:

≥94%

Alloy Or Not:

Alloys

Tolerance:

+/-1%, +/-0.02MM

Technology Process:

Extrusion, Deburring, CNC Machining Checking & Packing

Specification:

As Per Customer's Designs

Process Service:

Ending, Welding, Punching, Cutting & Machining

Surface Treatment:

Painting, Powder Coating, Polishing & Electroplating

OEM:

Yes

HS Code:

8104902090

High Light:

AZ92 Mag Alloy Die Casting Heat Sink, AZ91D Mag Alloy Die Casting Heat Sink, Inverter Heat Sink AZ31B AZ61A

Product Description

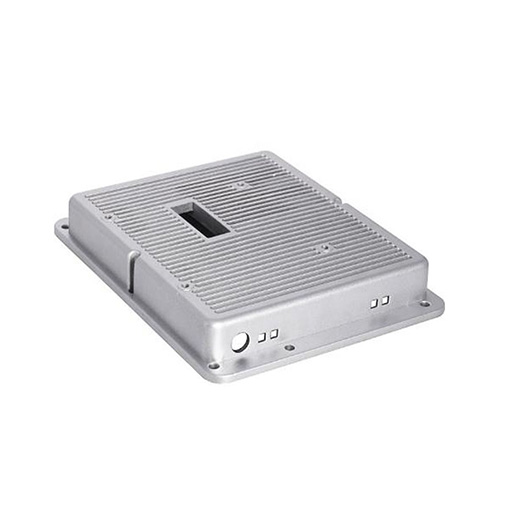

China Factory Magnesium Alloy Die Casting Heatsink AZ31B AZ61 AZ91D AZ92

Description

Magnesium (Mg), the 12th element on the periodic table, is a basic earth metal, ahead of aluminum (AL).Magnesium is one of the most abundant light metallic elements on earth, and is widely found in magnesite (magnesium carbonate), dolomite (calcium magnesium

carbonate) and carnallite (magnesium potassium chloride hydrate). Magnesium alloys are well-known for being the lightest structural alloys. They are made of magnesium, the lightest structural metal, mixed with other metal elements to improve the physical properties. These elements include manganese, aluminium, zinc, silicon, copper, zirconium, and rare-earth metals.Magnesium alloys have advantages in heat dissipation relative to alloys. For heat sinks of magnesium alloy and aluminum alloy materials of the same volume and shape, the heat (temperature) produced by a certain heat source is easier to transfer from the root of the heat sink to the top of the magnesium alloy than the aluminum alloy. Speed, the top is easier to reach high temperature. That is, the temperature difference between the root and top of the radiator made of aluminum alloy material is smaller than that of the radiator made of magnesium alloy material. This means that the temperature difference between the air temperature at the root of the heat sink made of magnesium alloy and the air temperature at the top is larger than that of the heat sink made of aluminum alloy material, so it accelerates the diffusion and convection of the air inside the radiator and improves the heat dissipation efficiency. Therefore, at the same temperature, the heat dissipation time of magnesium alloy is not half that of aluminum alloy.

Specification

Magnesium (Mg), the 12th element on the periodic table, is a basic earth metal, ahead of aluminum (AL).Magnesium is one of the most abundant light metallic elements on earth, and is widely found in magnesite (magnesium carbonate), dolomite (calcium magnesium carbonate) and carnallite (magnesium potassium chloride hydrate).

Product Name

Heatsink; Magnesium heat sink; Extruded heatsink; Heat sink extrusion

Material

AZ31B, AZ61A, AZ91D, AZ92

Detailed Size

As per customers' design

Max Aspect Ratio( Fin Height / Fin Gap)

More than 20 times aspect ratio heatsink can be extruded by 800 Tons--6000 Tons extruding machines by most advanced technology

Max Width

Ultra wide extruded heatsink can be made by our unique friction welding technology

Standard Mold Qty

30,000+ sets standard molds in stock for your option,saving your R&D cost

Sample Service

Samples with differernt sizes are availabe for prototypes test within 1 week

Production Process

Profiles Extruding---Cutting---CNC Machining(Milling, Drilling,Tapping)---Deburring--- Cleaning--- Inspecting--Packing

Surface Treatment

Degreasing,(Black) Anodizing,Sand Blasting,Painting,Chromating and Laser marking

Reference Standard

GB/T 3190-2008,GB/T 14846-2008,ISO 2768

Experience

More than 20 years professional manufacturing experience

Application

LED Lighting,Inverter,Welding Machine,Communication Device,Power Supply Equipment,Electronic Industry,Thermoelectric Coolers/Generator,IGBT/UPS Cooling Systems,etc.

Because magnesium alloy has good thermal conductivity and low cutting force, the heat dissipation rate during processing is very fast, so the tool life is long and the amount of sticking is small, which can reduce tool costs and shorten the downtime required for tool replacement. Because magnesium is easy to cut, its chip breaking performance is very good, under normal circumstances, only one finishing process can achieve the required final surface finish.
Good heat transfer: Although the thermal conductivity of magnesium alloy is not as good as that of aluminum alloy, it is dozens of times higher than that of plastic. Therefore, magnesium alloy used in electrical products can effectively dissipate internal heat to the outside.
Application range: Magnesium alloy is used in the casing and heat dissipation parts of computers and projectors that generate high temperatures inside. The use of magnesium alloy on the casing of the TV can achieve no heat dissipation holes.
Others: magnesium alloy is 200 times higher than plastic in thermal conductivity, thermal expansion performance is only half of the plastic.

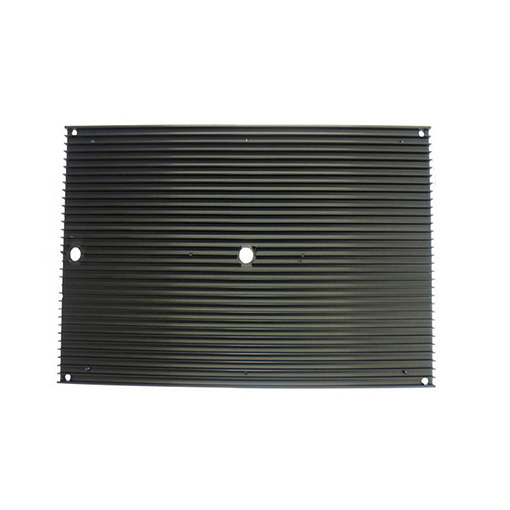

Purity 98% Extruded Heat Sink Profiles AZ91D Magnesium Alloy

  • 1.What characteristics make a heatsink a good one?

    A: High heatsink surface;Good aerodynamics;Good thermal transfer within the heatsink;Perfect flatness of the contact area;Good mounting method.

  • 2.How long is your delivery time?

    A:Generally it is 5-10 days if the heatsinks are in stock. or it is 30-40 days for mass production

  • 3.Do you provide samples ?

    A: Yes, we could offer paid sample for prototypes testing if there is stock.we have thousands of standard heatsinks with different sizes and shapes.

  • 4.What is your terms of payment ?

    A: Usually 100% payment before shipment. For regular customers,the terms can be nogotiated.
