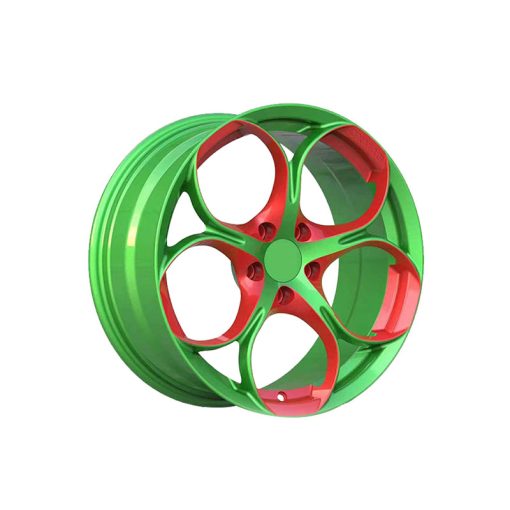

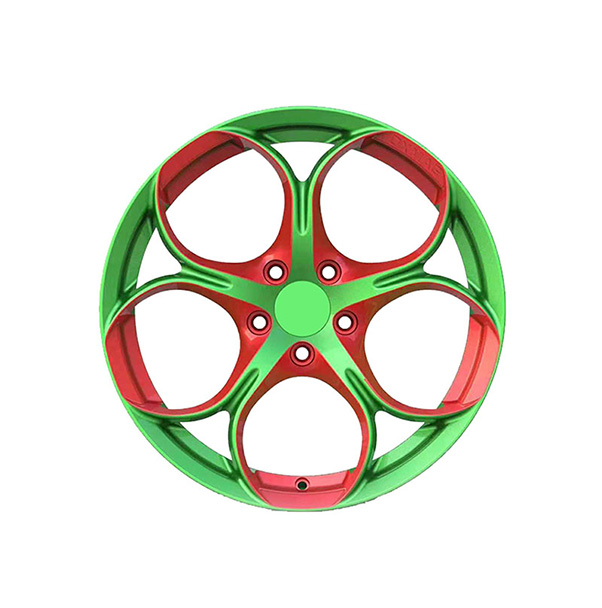

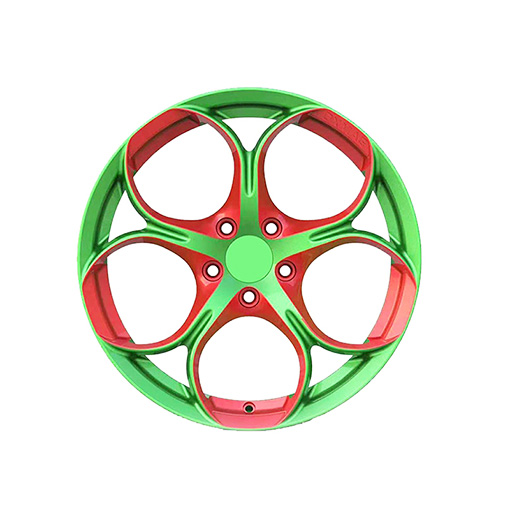

Green forged magnesium wheel

Basic Information:

Place of Origin:

Zhengzhou China (Mainland)

Brand Name:

SinoMg

Certification:

ISO9001:2000. SGS

Model Number:

20″

Minimum Order Quantity:

4 Piece

Price:

Negotiable

Packaging Details:

Carton

Delivery Time:

20 – 30 days

Payment Terms:

T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability:

2,000,000 piece per year

Detail Information

Product Name:

Forging Mg Wheel

Type:

Forging

Wheel Material:

Magnesium Alloy

Finish Process:

Painting, Wire Brush, Polish And Chrome

PCD:

100mm, 108mm 112mm 114.3mm And 115mm

Wheel Hub:

19"

ET:

10MM - 50 MM

Painting Color:

Black, Chrome, Grey And Sliver

Hole Size:

4" 5" 8" 10" Inch

Width Sizes:

13J - 22J

CB:

73.1 - 30.8

Spoke Type:

Equal Diameter Spoke

Drive Wheels:

4WD

Fuel Consumption Reduce:

10% -18%

Emission Reduce:

3%

Braking Distance Reduce:

3%

Acceleration Time Reduce:

4%

Steering Force Reduce:

3%

Tire Life Improve:

5%

Endurance Mileage Improve:

10-15%

Wheel Accessory:

Hub Ring

HS Code:

87087091

High Light:

Mg 16x7 4x100 wheels,16x7 4x100 Magnesium Alloy Wheels,ET10 Lightweight Forged Rims

Product Description

Top Quality Various Shape and Colors Forged Mg Alloy Wheel 20 Inch

Description

Wheel weight is a key component in “un-sprung” weight mass of an auto-mobile (tyres, wheels, brake disks, etc.), which directly affects vehicle performance parameters and the lifetime of suspension components. A lighter wheel is much easier to spin and to stop due to a lower momentum of inertia. Forged magnesium wheels yield shorter braking distance and faster acceleration, improve manoeuvrability and overall performance and safety, also reduced fuel consumption (by up to 5-7%). The dampening ability (the absorption of shocks and vibrations caused by road imperfections) of magnesium alloys is 100 times higher than those made from aluminium. This promotes increased durability of suspension brackets, smooth and easy motion of the car, and a longer lifetime of the suspension and brakes.

The high heat conductivity property of magnesium also means cooler brake disks, with a longer life for brake pads. Due to the specific metal structure obtained in the forging process, forged magnesium wheels are decidedly more corrosion-resistant than cast magnesium wheels.

Magnesium alloys are also used in many other engineering applications where being lightweight is a significant advantage. Magnesium-zirconium alloys tend to be used in relatively low-volume applications where they are processed by sand or investment casting, or wrought products by extrusion or forging.

Zirconium-free alloys, principally AZ91 but also other alloys, are used in automotive and various other high-volume applications. Other applications include electronics, sporting goods, nuclear applications, office equipment, flares, sacrificial anodes for the protection of other metals, flash photography and tools.

Specification

Reducing vehicle weight is one of the important measures to improve Automobile fuel economy, reduce energy consumption and improve safety performance. For every 100kg reduction in the dead weight of an automobile, the fuel consumption of 100km can be reduced by about 0.7l, and the CO2 emission can be reduced by 2.5g for every 1L of fuel saved.The use of magnesium alloy wheel hub is one of the most important ways of automobile lightweight.

 Item

 15*6

 16*7

 17*7.5

 18*8.5

 19*8

 Reference Weight(kg)

 5.5

 6.5

 7.2

 8.3

 9.2

 Load rating(kg)

 600

 690

 750

 750

 800

 ET

 ET 30-60, can be specified as 30, 35, 38, 40, 42, 45, 54, 60 etc.

 Scope of PCD

 Accept the customization of 98 ~ 139.7mm,suitable for most cars.

 Raw material

 AZ80A

 Technology

 Forging + machining + painting

 Note: All parameters can be customized

The range of new energy automobile can be increased by 10% if magnesium alloy wheel hub is be used, BYD's E6 new energy automobile can run 300 kilometer on full power, one hundred kilometers consumes about 20 kilowatt-hours of electricity, After using magnesium alloy hub, the range of the car can be increased by about 30 km, and saves about six kilowatt-hours of electricity to achieve effective energy saving. For fuel vehicles, fuel saved 11.79% per kilometer,CO2 emissions were reduced by 2.06g.

Our Advantage of Forged Magnesium Wheel

  • 1. Quality Process Control

    All wheels are checked by X-RAY testers, Helium or Water Air-leakage testers, Metallurgical Inspectors, Balancing Testers, Run-out Testers etc.

  • 2. Strength Assurance

    Based on American Standard--SAE, Japanese standard--VIA/JWL or Germany Standard-- TUV, we do Impact testing, Cornering Fatigue testing, and Radial Fatigue testing

  • 3. Dust free

    Painting line is sealed and dust-free

  • 4. Minimum Order

    40 wheels on each part number can be acceptable for production.

  • 5. Big inventory

    Big inventory (70,000 wheels) for various choices and instant shipment from our warehouse, you can choose even 4 wheels to cover more various car models.

  • 6. OEM/ODM service

    Use your logo for your wheels

Custom Forged Wheels 21 ET30 Mag Alloy Rims 139.7mm PCD

  • 1.How do you ensure wheel quality?

    A: Every wheel is physically tested in compliance with JWL VIA or TUV standard; Our team ensures the production process at every stage and our QC will inspect each procedure as well.

  • 2.How long does it take to finish the mold development?

    A:40-45 days around

  • 3.Can I take a sample first to check the product quality?

    A: We can offer one sample for our customers if they open the mold in our company.

  • 4.In case of quality problem, how do you deal with them?

    A: Firstly, you should take the photos or videos and send to us; Secondly, we will send you new wheels and cover all charges; Or you can deduct the wheel charges next order

  • 5.What can I do if I cannot find any interesting wheels in your website?

    A: Contact us on line or send us email, we can send you our new design, or you send us your pictures or designs, OEM and ODM are also welcome

  • 6.Can you help me build a new brand in my market?

    A: Yes, we are glad to do so.

  • 7.How to order and make a payment?

    A:After your selection, we will make you a PI. You can pay the deposits by T/T bank transfer or open the 100% irrevocable L/C at sight from your bank.

  • 8.what kind of finishing can you do?

    A: Black, silver, gunmetal, matt black, grey, hyper black, hyper silver, machined face, machined lip, color line, chrome, vacuum chrome, anodized, full Polish, milling, sand blast, two colors, etc.

  • 9.What kind of rims can you produce?

    A: Lower pressure, Gravity casting, Forged
