Black forged magnesium wheel

Basic Information:

Place of Origin:

Zhengzhou China (Mainland)

Brand Name:



ISO9001:2000. SGS

Model Number:

16″ – 25″

Minimum Order Quantity:

4 Piece



Packaging Details:

Standard Export Carton

Delivery Time:

20 – 30 days

Payment Terms:

T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability:

2,000,000 piece per year

Detail Information

Product Name:

Magnesium Wheel


Magnesium Alloy, Mag Alloy

Wheel Type:


Finish Proces:

Painting, Wire Brush, Polish And Chrome

PCD Data:

100MM, 108MM, 112MM, 114.3MM And 115MM

Wheel Hub Diameter:

16" - 25"

ET Data:

10MM - 50 MM

Painting Color:

Black, Chrome Grey And Sliver

Hole Size:


Width Sizes:

13J - 22J


73.1 - 30.8


Equal Diameter

Drive Wheel:

4 WD

Fuel Consumption Reduced:


Emission Reduced:


Braking Distance Reduce:


Acceleration Time Reduced:


Steering Force Reduce:


Tire Life Improve:


Endurance Mileage Improve:


Wheel Accessory:

Hub Rim

HS Code:


High Light:

PCD 115mm Magnesium Alloy Wheels, 22J 25" Magnesium Alloy Wheels, 4WD Mag alloy automotive rims & wheels

Product Description

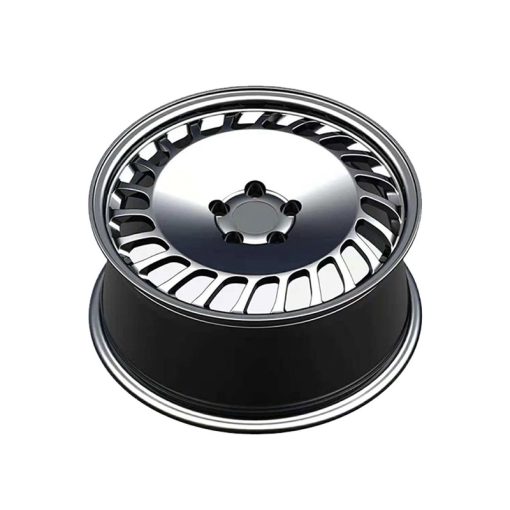

High Precision Quality Wear-Resisting Automotive 16" - 25" Forged Magnesium Alloy Car Rims


Forged magnesium wheels are considerably lighter than their forged aluminum counterparts making them the ultimate choice for any performance or tracking-going vehicle.

Magnesium also stands out due to its superior characteristics, advantages that make it a perfect base metal for alloy wheels:

- Lightweight

- Low density (two thirds that of aluminum)

- Good high-temperature mechanical properties

- Good to excellent corrosion resistance

Magnesium alloy wheel hub is attracting more and more attention by people. The utilization of magnesium alloy wheel hub in high-grade cars, modified cars, passenger cars and automobile will gradually increase. At present, it is a good opportunity to expand the market of magnesium alloy wheel hub at home and abroad, the development potential is considerably huge.

Forged magnesium wheels are extremely durable and rigid. The strength of a forged wheel made from magnesium alloy fare exceeds the strength of a cast equivalent. This is achieved by forming a unique fibre structure of the alloy manufactured by the precision 3D hot forging process in a press with a 20,000-ton capacity. A forged wheel does not crack; it is designed to bend without cracking. Forged magnesium wheels are stronger and more durable. Forged magnesium wheels are very lightweight, as much as 1.5 times lighter than aluminium wheels, forged magnesium wheels are twice as light compared to cast wheels of the same dimensions.


Reducing vehicle weight is one of the important measures to improve Automobile fuel economy, reduce energy consumption and improve safety performance. For every 100kg reduction in the dead weight of an automobile, the fuel consumption of 100km can be reduced by about 0.7l, and the CO2 emission can be reduced by 2.5g for every 1L of fuel saved.The use of magnesium alloy wheel hub is one of the most important ways of automobile lightweight.







 Reference Weight(kg)






 Load rating(kg)







 ET 30-60, can be specified as 30, 35, 38, 40, 42, 45, 54, 60 etc.

 Scope of PCD

 Accept the customization of 98 ~ 139.7mm,suitable for most cars.

 Raw material



 Forging + machining + painting

 Note: All parameters can be customized

The range of new energy automobile can be increased by 10% if magnesium alloy wheel hub is be used , BYD's E6 new energy automobile can run 300 kilometers on full power, one hundred kilometers consumes about 20 kilowatt-hours of electricity, After using magnesium alloy hub, the range of the car can be increased by about 30 km, and saves about six kilowatt-hours of electricity to achieve effective energy saving. For fuel vehicles, fuel saved 11.79% per kilometer,CO2 emissions were reduced by 2.06g.

Our Advantage of Forged Magnesium Wheel

  • 1. Quality Process Control

    All wheels are checked by X-RAY testers, Helium or Water Air-leakage testers, Metallurgical Inspectors, Balancing Testers, Run-out Testers etc.

  • 2. Strength Assurance

    Based on American Standard--SAE, Japanese standard--VIA/JWL or Germany Standard-- TUV, we do Impact testing, Cornering Fatigue testing, and Radial Fatigue testing

  • 3. Dust free

    Painting line is sealed and dust-free

  • 4. Minimum Order

    40 wheels on each part number can be acceptable for production.

  • 5. Big inventory

    Big inventory (70,000 wheels) for various choices and instant shipment from our warehouse, you can choose even 4 wheels to cover more various car models.

  • 6. OEM/ODM service

    Use your logo for your wheels

PCD 115mm 22J 25" Magnesium Alloy Wheels 4WD Mag Alloy Automotive Rims & Wheels

  • 1.How do you ensure wheel quality?

    A: Every wheel is physically tested in compliance with JWL VIA or TUV standard; Our team ensures the production process at every stage and our QC will inspect each procedure as well.

  • 2.How long does it take to finish the mold development?

    A:40-45 days around

  • 3.Can I take a sample first to check the product quality?

    A: We can offer one sample for our customers if they open the mold in our company.

  • 4.In case of quality problem, how do you deal with them?

    A: Firstly, you should take the photos or videos and send to us; Secondly, we will send you new wheels and cover all charges; Or you can deduct the wheel charges next order

  • 5.What can I do if I cannot find any interesting wheels in your website?

    A: Contact us on line or send us email, we can send you our new design, or you send us your pictures or designs, OEM and ODM are also welcome

  • 6.Can you help me build a new brand in my market?

    A: Yes, we are glad to do so.

  • 7.How to order and make a payment?

    A:After your selection, we will make you a PI. You can pay the deposits by T/T bank transfer or open the 100% irrevocable L/C at sight from your bank.

  • 8.what kind of finishing can you do?

    A: Black, silver, gunmetal, matt black, grey, hyper black, hyper silver, machined face, machined lip, color line, chrome, vacuum chrome, anodized, full Polish, milling, sand blast, two colors, etc.

  • 9.What kind of rims can you produce?

    A: Lower pressure, Gravity casting, Forged
